DSP-15EExmNT

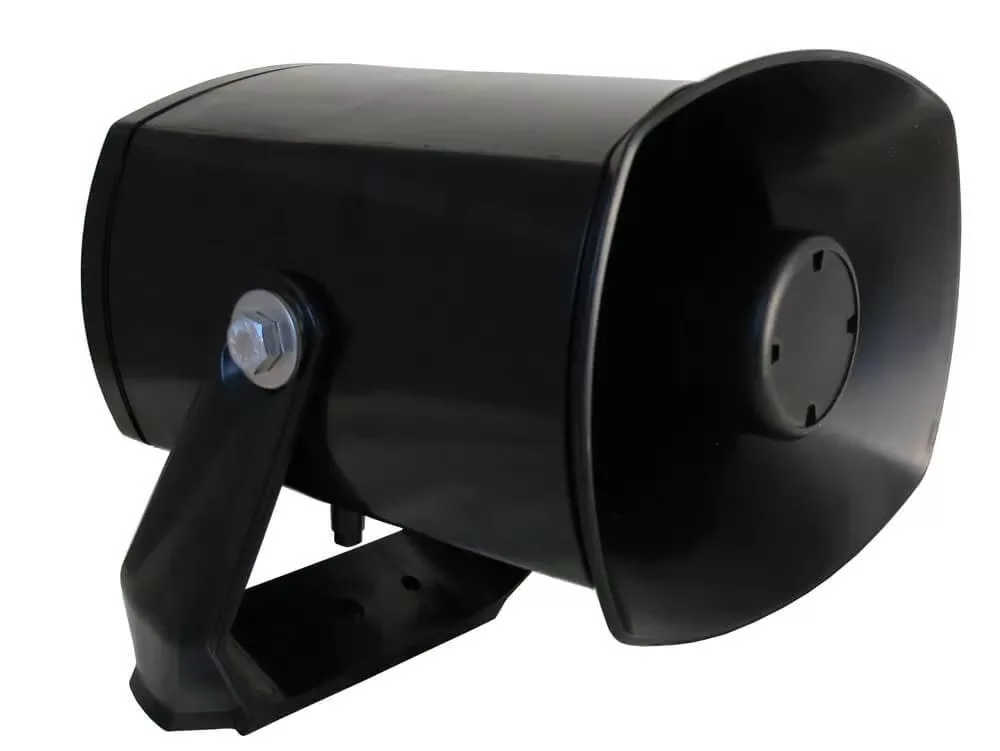

This versatile 25W Ex plastic horn speaker is light in weight and features a spacious connection chamber of protection type ‘e’. The model has extensive certification qualifying it for use in nearly all corners of the world.

Description

DSP-15EExmNT has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard.

Material/Color Anti-static PA / Black
Mounting Bracket / Swivel bracket
Termination E-chamber / Push terminal
Weight 2.2 kg
IP Rating IP66 / IP67
Min/Max amb temp -50 °C / 60 °C
Rated power 25 W
SPL 1W/1m: 106 db
SPL Rated Power 118 db
Effective freq. Range 380 – 8000 Hz
Dispersion (-6dB) 1kHz / 4kHz 120° / 37°
Options Impedance / Label / Transformers
