Description

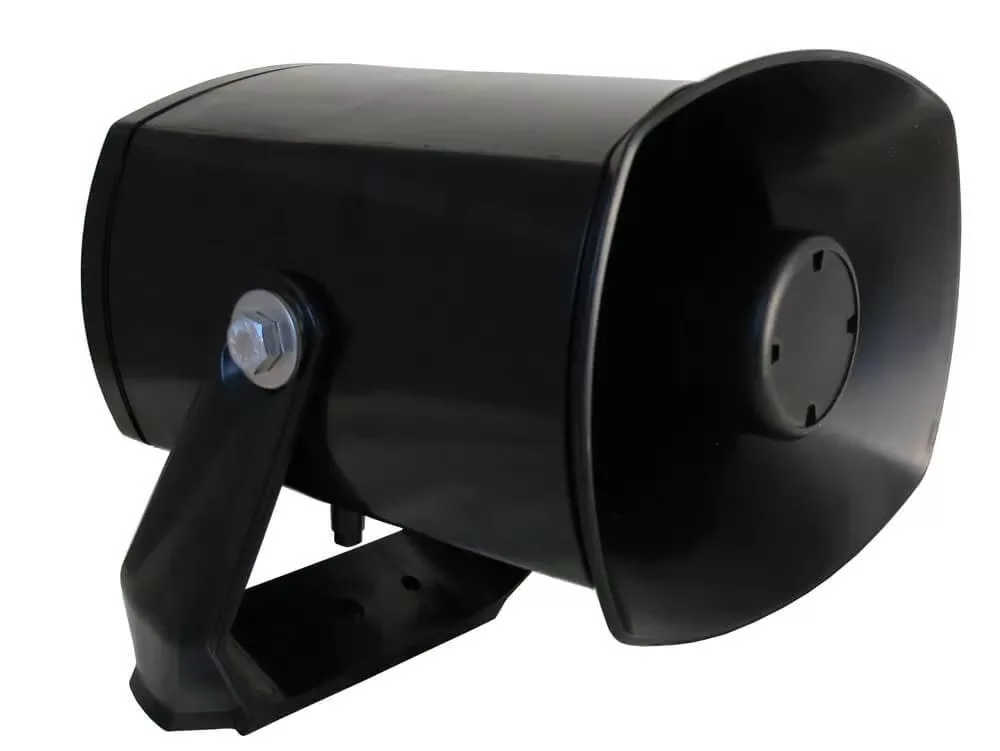

DSP-15EExmNT has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard.
Material/Color | Anti-static PA / Black |
Mounting | Bracket / Swivel bracket |
Termination | E-chamber / Push terminal |
Weight | 2.2 kg |
IP Rating | IP66 / IP67 |
Min/Max amb temp | -50 °C / 60 °C |
Rated power | 25 W |
SPL 1W/1m: | 106 db |
SPL Rated Power | 118 db |
Effective freq. Range | 380 – 8000 Hz |
Dispersion (-6dB) 1kHz / 4kHz | 120° / 37° |
Options | Impedance / Label / Transformers |
